LCD Upgrade Microvitec Monitor - CRT 12HC4CAS CRT To LCDs
LCD Upgrade Microvitec Monitor - CRT 12" MV12LCDL-MC head monitor CRT To LCDs
LCD Upgrade Microvitec Monitor - CRT 12" MV12LCDL-CHA chassis monitor CRT To LCDs
LCD Upgrade Microvitec Monitor - CRT 12" Delta-Scan 1211 12HC4CAS Open Frame Chassis CRT To LCDs
A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

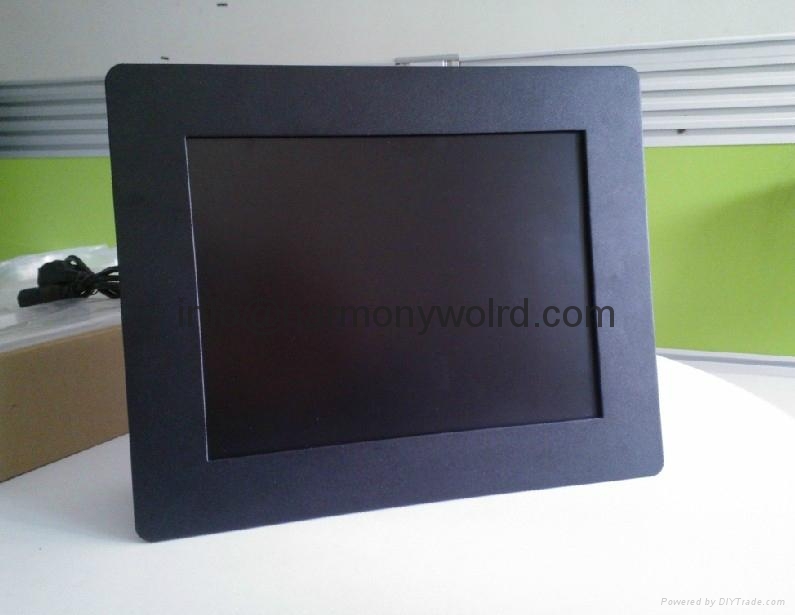

This 10.4" TFT installation monitor has been designed as replacement for 12" tube monitor and 10"-12" EL flat Panel. Conversion with plug and play is quick and easy with a few simple steps.
Technical specifications:
DISPLAY SIZE: 10.4 " TFT full color active
RESOLUTION: 800 x 600, 640x480 pixels
BRIGHTNESS: 500 cd/m2
FREQUENCY: 12-45 kHz horizontal, 50-75 Hz vertical
Active area: TFT screen 211 x 158.4 mm (W x H)
Video connector: 5 BNC, D-sub 9pin, D-sub 15PIN
Settings via OSD (On the converter)
Measurements Plug & Play
Power supply: AC 85-240V Via power adaptor OR DC12V.
Temperature range: -10°C to 55°C
