Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs

  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
  • Upgrade KRISTEL 2523-A42 25RE-A72 25RE-A42 12 Monochrome CRT To LCDs
Model No.︰HCM1011104B-KRI
Brand Name︰Harmonywolrd
Country of Origin︰China
Unit Price︰US $ 550 / pc
Minimum Order︰1 pc
Share on:

 Total 797 Related Items
Prev229230231232233Next

Product Description

Replcement Monitor for KRISTEL CORP. 2523-A42 HIGH RES 110§ VIEW 12 IN. MONO MON
Replcement Monitor for KRISTEL CORP. 25RE-A72 HIGH RES 12 INCH MONO MONITOR
Replcement Monitor for 25RE-A42 12 Monochrome Kristel
Replcement Monitor for 25RE-A72 12 Monochrome Kristel
Replcement Monitor for 2523-A42 12 Monochrome Kristel

A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

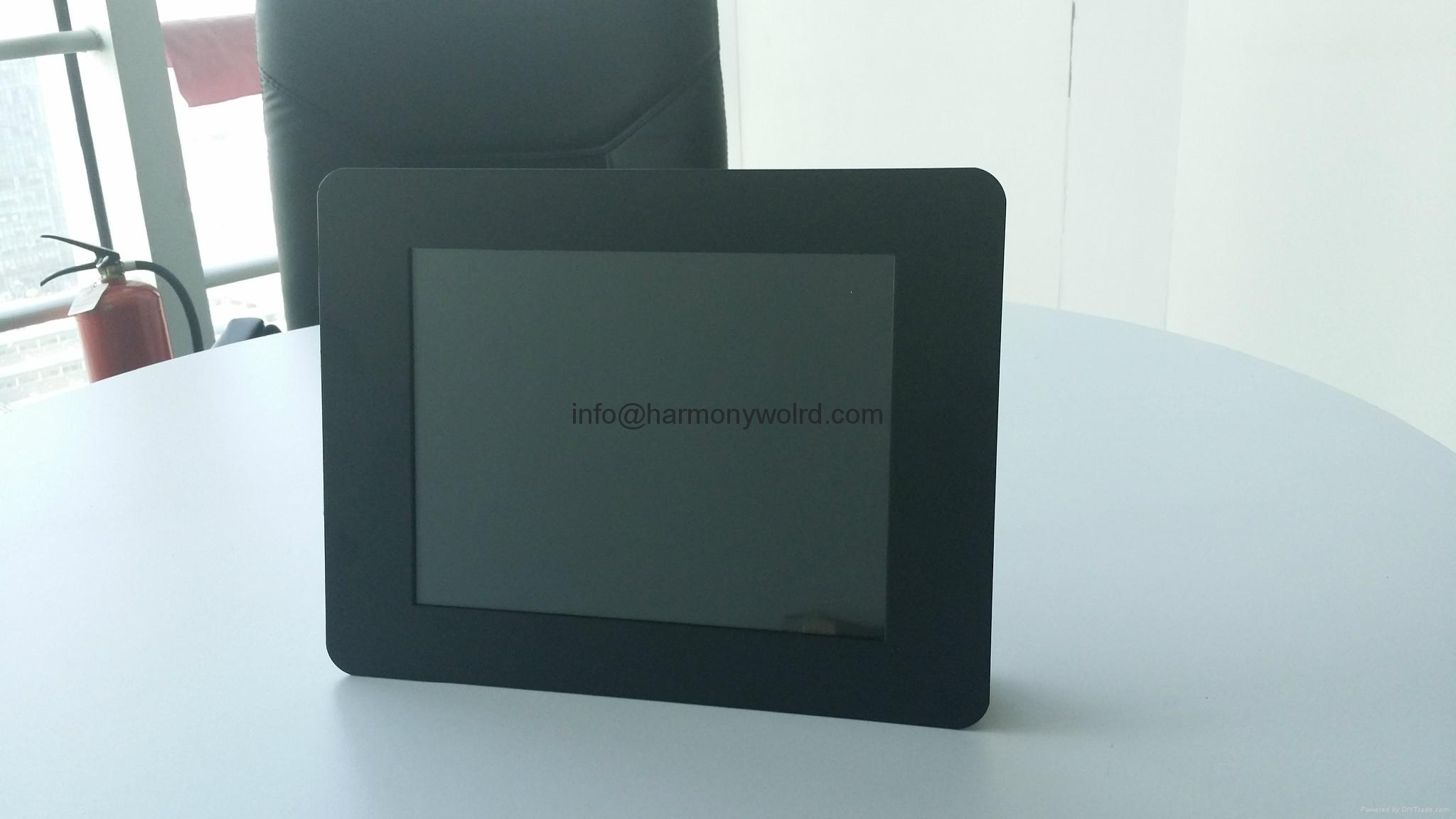

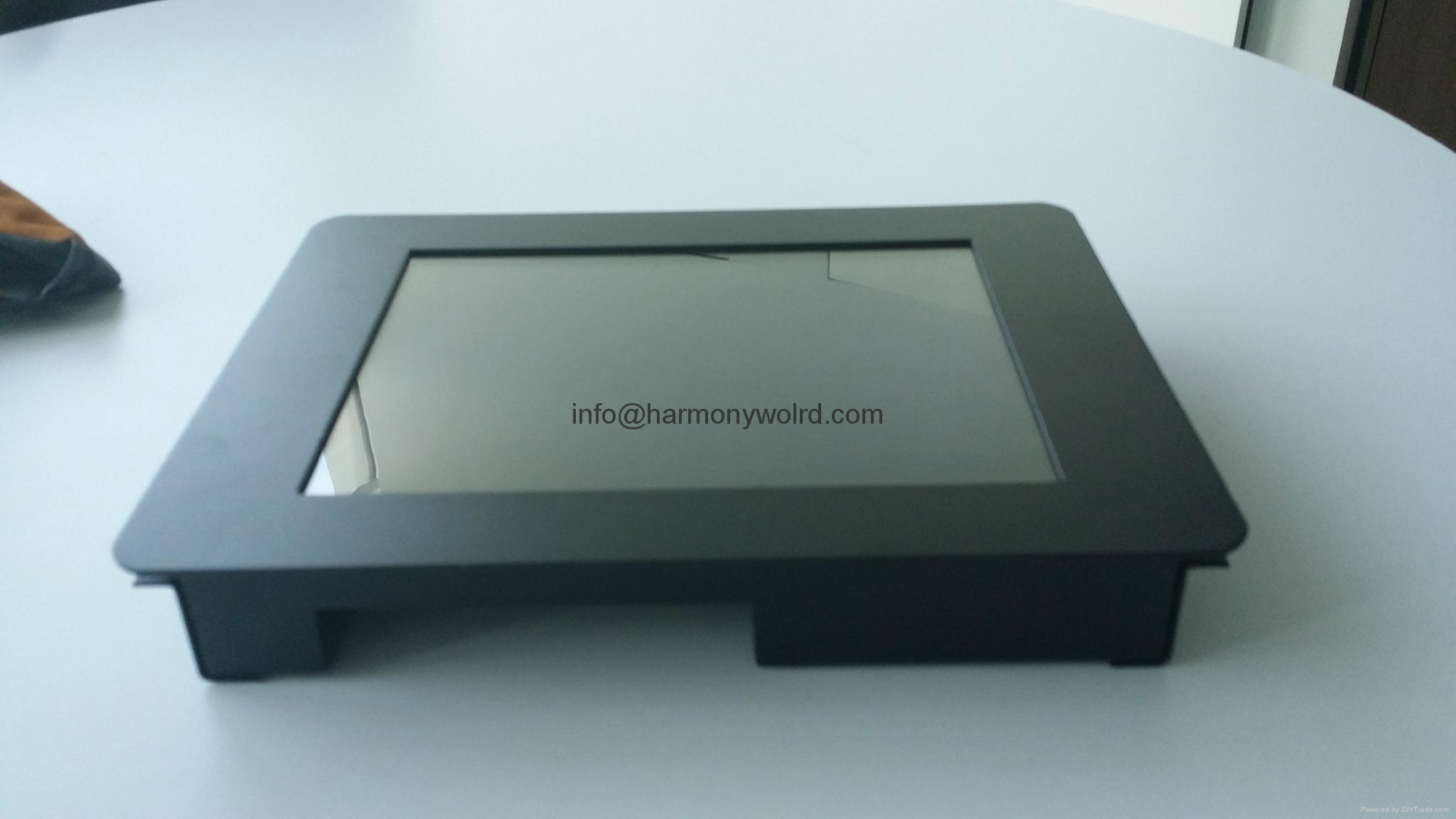

This 10.4" TFT installation monitor has been designed as replacement for 12" tube monitor and 10"-12" EL flat Panel. Conversion with plug and play is quick and easy with a few simple steps.


Technical specifications:
DISPLAY SIZE: 10.4 " TFT full color active
RESOLUTION: 800 x 600, 640x480 pixels
BRIGHTNESS: 500 cd/m2
FREQUENCY: 12-45 kHz horizontal, 50-75 Hz vertical
Active area: TFT screen 211 x 158.4 mm (W x H)
Video connector: 5 BNC, D-sub 9pin, D-sub 15PIN

Settings via OSD (On the converter)
Measurements Plug & Play

Power supply: AC 85-240V Via power adaptor OR DC12V.
Temperature range:  -10°C to 55°C
