Upgrade Yasnac Monitor C-5470YE c5470ye TX1424AD CDT-14111-B-8A LR42053 To LCD

  • Upgrade Yasnac Monitor C-5470YE c5470ye  TX1424AD CDT-14111-B-8A LR42053  To LCD
  • Upgrade Yasnac Monitor C-5470YE c5470ye  TX1424AD CDT-14111-B-8A LR42053  To LCD
  • Upgrade Yasnac Monitor C-5470YE c5470ye  TX1424AD CDT-14111-B-8A LR42053  To LCD
  • Upgrade Yasnac Monitor C-5470YE c5470ye  TX1424AD CDT-14111-B-8A LR42053  To LCD
  • Upgrade Yasnac Monitor C-5470YE c5470ye  TX1424AD CDT-14111-B-8A LR42053  To LCD
  • Upgrade Yasnac Monitor C-5470YE c5470ye  TX1424AD CDT-14111-B-8A LR42053  To LCD
Model No.︰HCM1011121B-YAS
Brand Name︰Harmonywolrd
Country of Origin︰China
Unit Price︰US $ 550 / pc
Minimum Order︰1 pc
Share on:

 Total 797 Related Items
Prev115116117118119Next

Product Description

LCD Upgrade Yasnac Monitor C-5470YE c-5470ye c5470ye or 5470ye yasnac 14 color monitor
LCD Upgrade Yasnac Monitor JANCD-SP23 JANCD-SP23 video driver for TX-1424AD. Yasnac.
LCD Upgrade Yasnac Monitor JZNC-10P-62E JZNC-10P-62E. Yasnac operator panel CDT-14111-B-8A 14 Color monitor
LCD Upgrade Yasnac Monitor JZNC-OP147-1 JZNC-OP147-1 SEE C-5470YE --Remove monitor from operator pane.
LCD Upgrade Yasnac Monitor LR42053 lr42053 yasnac mx-2 14 inch color monitor yasnac lr42053
LCD Upgrade Yasnac Monitor LR42053 NEW LR42053 Yasnac 14 inch color monitor



A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

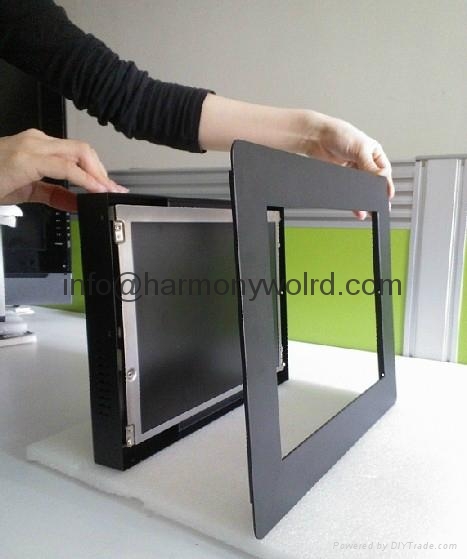

This 12.1" TFT installation monitor has been designed as replacement for 12"-14" tube monitor. Conversion with plug and play is quick and easy with a few simple steps.


Technical specifications:
Display / resolution 12.1" TFT full color active / 800x600 pixels
Brightness 370 cd
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD (On Converter)

Active area LCD screen 246.0 x 184.5 mm (W x H)
Housing compatible: Using original


 Power supply AC 85-240V rubber connector with safety fuse
Temperature range -10°C to 55°C

Product Image
