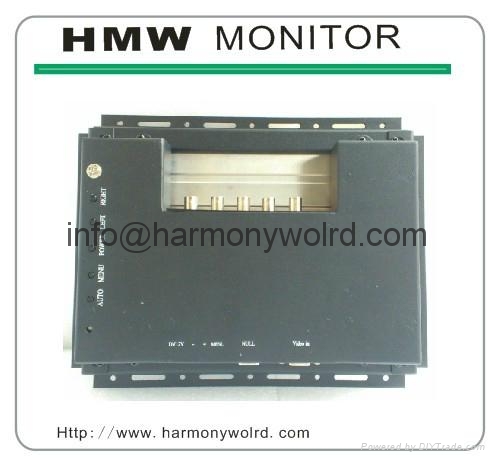

TFT Monitor for D14CM-06A Ozuchi Corporation - CRT
TFT Monitor for D15CM-04A Ozuchi Corporation - CRT
TFT Monitor for D15CM-01A Ozuchi Corporation - CRT
TFT Monitor for Ozuchi Corporation D9CM-01A CRT Monitor
TFT Monitor for Ozuchi Corporation D9CM-01A CRT Monitor
OPTION 1. 8.4" Monitor
"Display / resolution 8.4 "" TFT full color active / 800*600 pixels
Brightness 500 cd/m2
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD
-Effective Viewing: 170.3*127.8mm
-Overall Dim.:231.20*180.6 cm

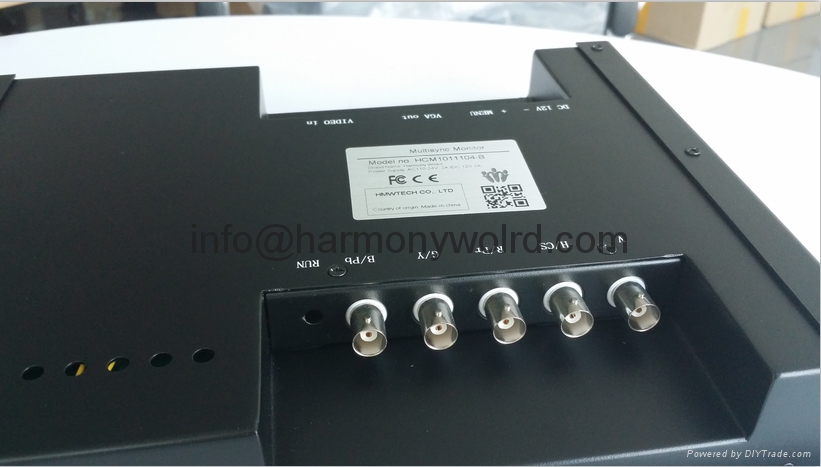

Input signals: Multisync. RGB, CGA, EGA, MDA,TTL, Component.
Power supply AC 85-240V rubber connector with safety fuse "
OPTION 2. 10.4" Monitor
"Display / resolution 10.4 "" TFT full color active / 640x480 pixels
Brightness 300 cd/m2
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD (On the converter)
-Effective Viewing: 211.2×158.4mm
-Overall Dim.: 271.2*211 cm
Input signals: Multisync. RGB, CGA, EGA, MDA,TTL, Component.
Power supply AC 85-240V rubber connector with safety fuse "
OPTION 3. 12.1" Monitor
"Display / resolution 12.1"" TFT full color active / 800x600 pixels
Brightness 370 cd
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD (On Converter)
-Effective Viewing: 246.0×184.5mm
-Overall Dim.: 307.8*240.6 cm
Input signals: Multisync. RGB, CGA, EGA, MDA,TTL, Component.
Power supply AC 85-240V rubber connector with safety fuse "
15" Monitor
"Display / resolution 15"" TFT full color active / 1024(RGB)×768 pixels
Brightness 370 cd
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD
Active area LCD screen:304.1×228.1cm(W x H)
Overall Dim.:360*288 cm
Input signals: Multisync. RGB, CGA, EGA, MDA,TTL, Component.
Power supply AC 85-240V rubber connector with safety fuse "
