Upgrade Monitor TOSHIBA D9CM-01A D9MRD D9MR-10A D9MR-51B D9MM-11A BTD-11 to LCDs

Model No.︰

HCM1011084O-TOS

Brand Name︰

Harmonywolrd

Country of Origin︰

China

Unit Price︰

US $ 550 / pc

Minimum Order︰

1 pc

Share on:

Product Description

LCD Upgrade Monitor TOSHIBA D9CM-01A 9-in LCD Retrofit - QES1508-020
LCD Upgrade Monitor Toshiba D9CM-01A Toshiba 9 Colour Machine Tool Monitor
LCD Upgrade Monitor Toshiba D9MRD Toshiba Monitor
LCD Upgrade Monitor TOSHIBA D9MR-10A 9-in LCD Retrofit - QES1508-042
LCD Upgrade Monitor Toshiba D9MR-51B D9MR-51B 9 Toshiba Monochrome monitor
LCD Upgrade Monitor Toshiba D9MM-11A
LCD Upgrade Monitor Toshiba BTD-11





A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

This 8.4" TFT installation monitor has been designed as replacement for 9" tube monitor and EL Flat Panel. Conversion with plug and

play is quick and easy with a few simple steps.


Technical specifications:
Display / resolution 8.4 " TFT full color active / 640x480 pixels
Active Area: 170.88 x  128.16 mm
Brightness 500 cd/m2
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD (On the converter)

Dimension: 231.20mm*180(W x H)
Measurements Plug & Play

Power supply AC 85-240V rubber connector with safety fuse
Temperature range -10°C to 55°C-

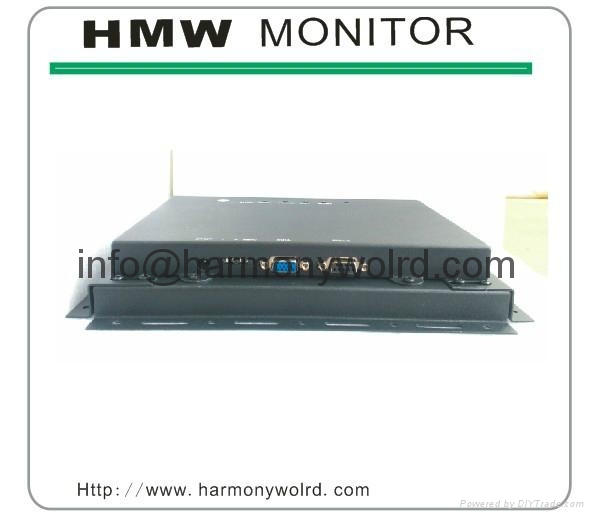

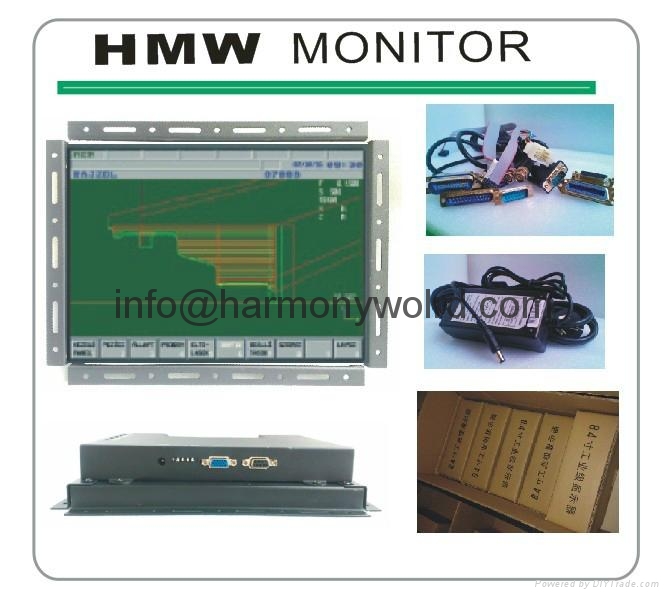

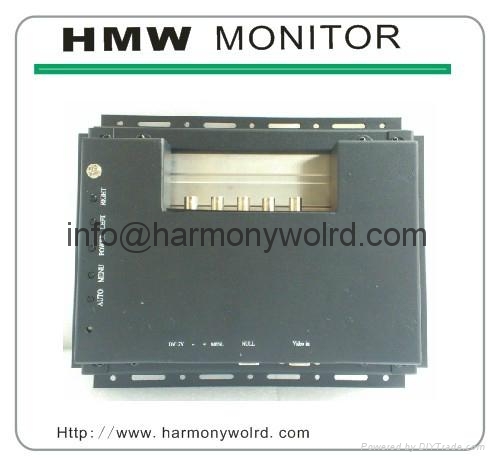

Product Image
